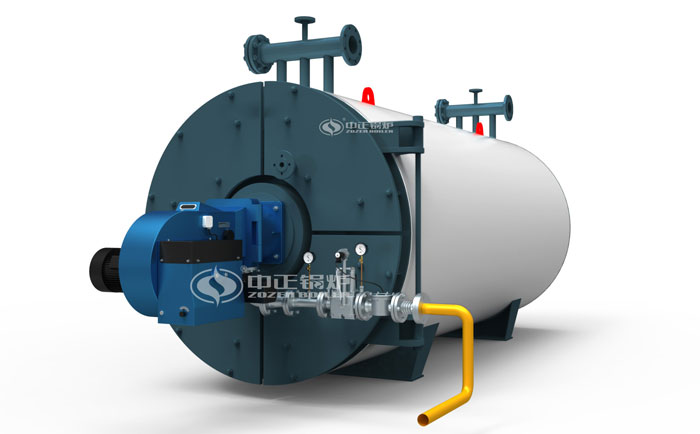

YQW series gas-fired horizontal thermal fluid heater

  • 01Product thermal capacity:700-14000 KW

  • 02Working pressure:0.8-1.0 MPA

  • 03Outlet temperature:320 °C

Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

Send Enquiry Get Quotation(contact us by one of the three ways)

If you are interested in our products, please email us at mayonghong@zozen.com

Introduction of YQW series gas-fired horizontal thermal fluid heater

YQW series gas-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass).

The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

Features of YQW series gas-fired horizontal thermal fluid heater

1. The manufacture of round coil tube adopts CNC coil tube automatic production line. Once-forming and no need for plastic

2. Fully automatic operating, burning, liquid level of high level tank, outlet temperature and flow rate are adjusted automatically and self-protected.

3. Multilayers closely spaced tube bundle and steel rod is used to seal and fix, completely eradicating short circuit of flue gas.

4. The inner coil tube has bigger flow rate, so it is more stable under high temperature operation.

Price of YQW series gas-fired horizontal thermal fluid heater

We are the boiler manufacturer with nearly 36 year experience and have formed manure and strict quality control system. Multi strict quality inspections gruarantee the superior quality of each set of boiler plant.

Our boiler has been exported to Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Peru, Chile and over 60 countries.

About YQW series gas-fired horizontal thermal fluid heater price, we provide 100% factory price and maximum discount for you. If you are new in this industry, we will provide professional suggestions and solutions for you. Welcome to visit our factory and company in China

Advantages of YQL series gas-fired thermal fluid heater

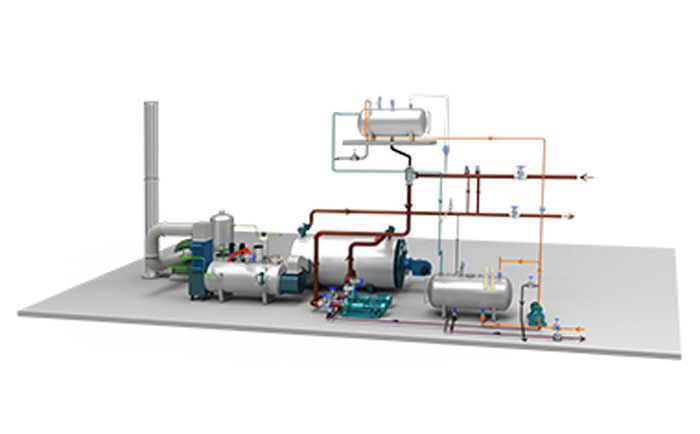

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

Technical Data

Related Projects

ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
