01Product thermal capacity:0.8-1.0 MPA
02Working pressure:320 °C
03Outlet temperature:7000-29000 KW
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

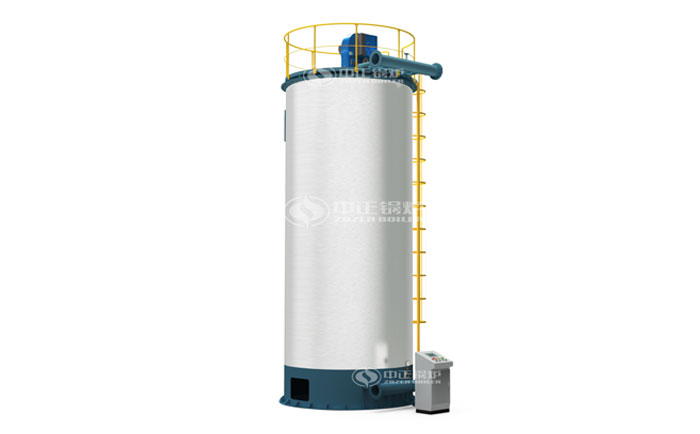

YQL series gas-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation.
After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.
1. The laying-off of steel tube adopts CNC 3D laser cutting machine.
2. Square coil tube and coil tube all adopt argon arc welding technique,which guarantees tubes are 100% qualified.
3.Use superior refractory brick to build inside and superior perlite in the middle. Keep the furnace temperature under 50℃ to make the minimization of loss.
4. Convection section: optimize convection heating surface and adopt effective fix and structural support to make its working life longer.
We are the boiler manufacturer with nearly 36 year experience and have formed manure and strict quality control system. Multi strict quality inspections gruarantee the superior quality of each set of boiler plant.
Our boiler has been exported to Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Peru, Chile and over 60 countries.
About YQL series gas-fired thermal fluid heater price, we provide 100% factory price and maximum discount for you. If you are new in this industry, we will provide professional suggestions and solutions for you. Welcome to visit our factory and company in China.
The oil-fired thermal fluid heater can operate stably even in low-pressure environment, and the temperature can be set by computer. The operation of the boiler is relatively stable, the temperature control is more accurate, and the thermal efficiency can reach more than 90%. YQL series gas-fired thermal fluid heater is an ideal heating equipment. It is widely used in various industries.
01
Square coil tube and coil tube all adopt argon arc welding technique,which guarantees tubes are 100% qualified.
02
Set up effective flue gas partition for convection heating surface and cast partition to make it works longer.
03
Flame-proof feeding bucket can avoid the feeding bucket is burnt and coking.
04
Furnace adopts double close line coil, which makes heating surface sufficient.
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
