Home / thermal fluid heaters / YLW series coal-fired thermal fluid heater
01Product thermal capacity:1400-29000 KW
02Working pressure:0.8-1.0 MPA
03Outlet temperature:320 °C
Available industries:Chemical,high temperature heating technology for fertilizer, melamine, alumina and so on
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

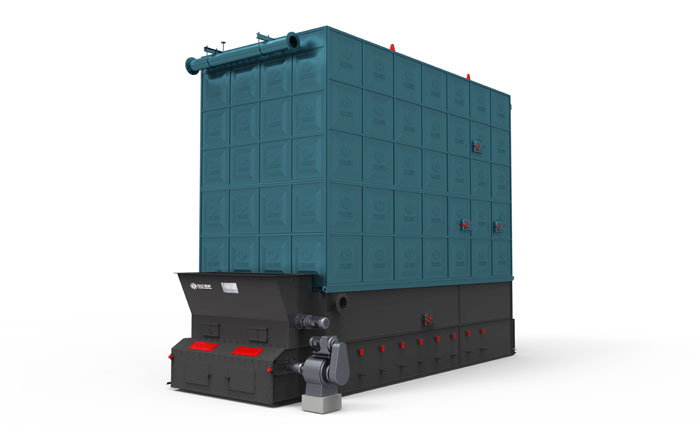

YLM thermal fluid heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately.
It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

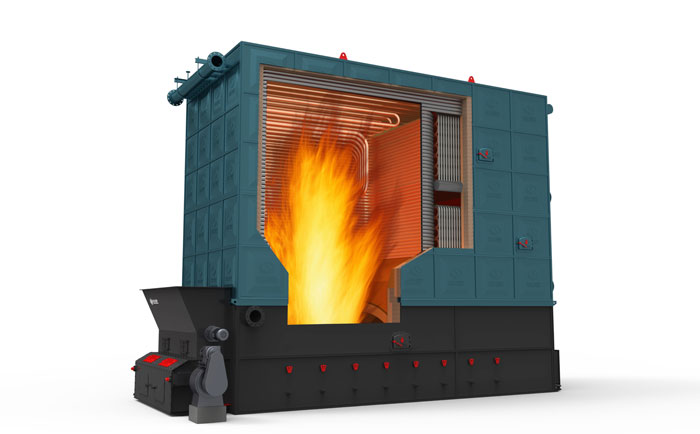

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.
1. The manufacture of serpentuator adopts serpentuator automatic production line, once-forming;
2. The optimized radiation heating surface and convective heating surface, the medium flow is more reasonable, without overheat of the carrier and reduce the life;
3. There is ash cleaning unit, which is easy for maintaining, operating and cleaning;
4. Use superior refractory brick to build inside and superior perlite in the middle. Keep the furnace temperature under 50℃ to make the minimization of loss;

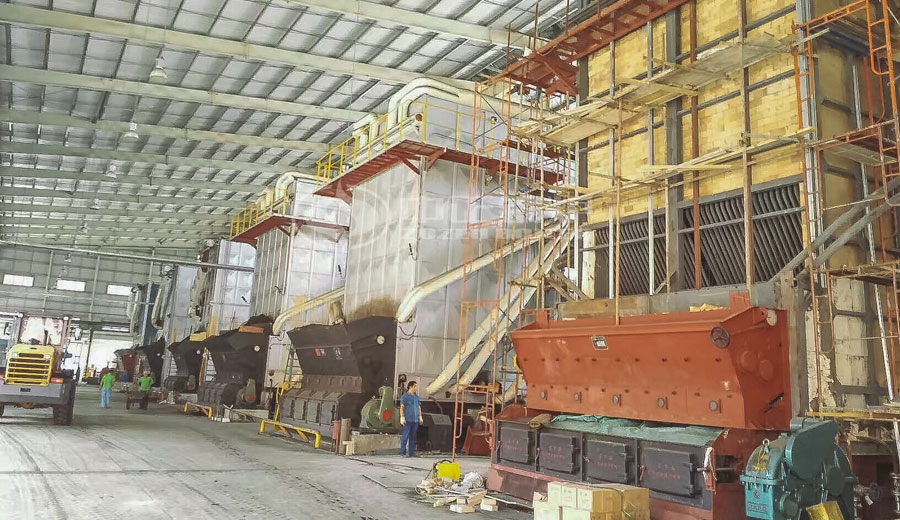

We are the boiler manufacturer with nearly 36 year experience and have formed manure and strict quality control system. Multi strict quality inspections gruarantee the superior quality of each set of boiler plant.
Our boiler has been exported to Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Peru, Chile and over 60 countries.
About YLW series coal-fired thermal fluid heater price, we provide 100% factory price and maximum discount for you. If you are new in this industry, we will provide professional suggestions and solutions for you. Welcome to visit our factory and company in China

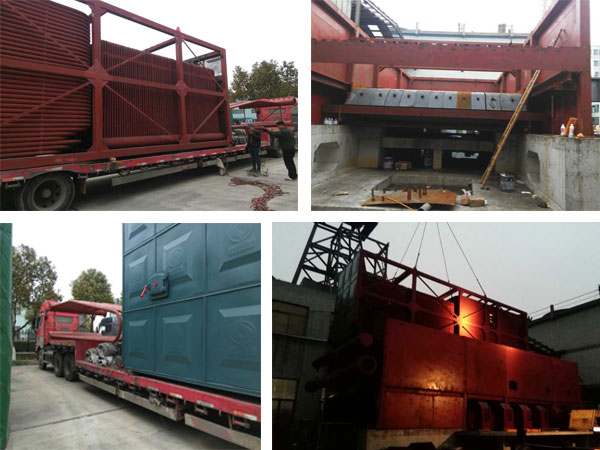

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).
01
The manufacture of serpentuator adopts serpentuator automatic production line, once-forming.
02
Optimize convection heating surface and adopt effective fix and structural support to make its working life longer.
03
Flame-proof feeding bucket can avoid the feeding bucket is burnt and coking.
04
Keep the furnace temperature under 50℃ to make the minimization of loss.
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
