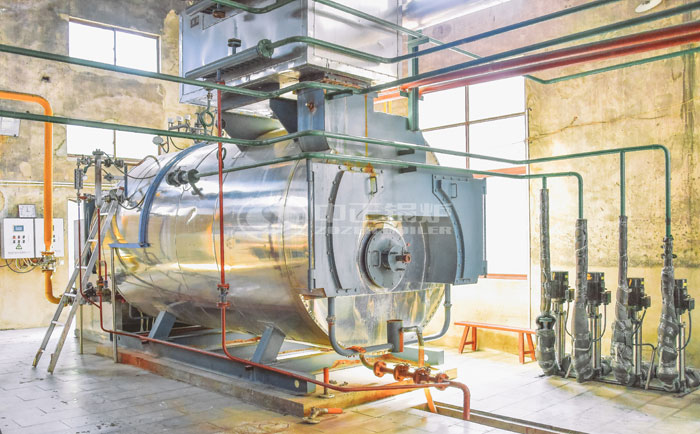

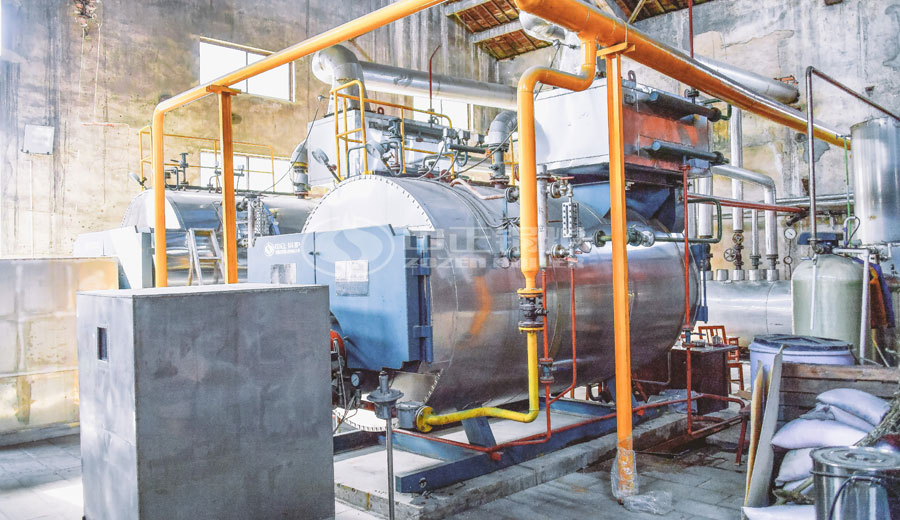

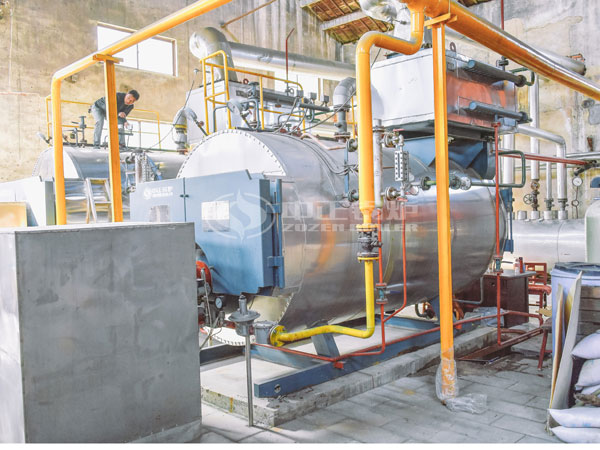

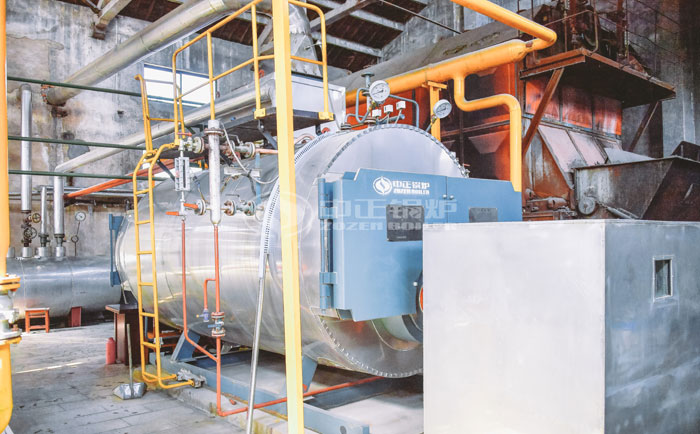

WNS series gas-fired(oil-fired) steam boiler

  • 01Product thermal capacity:0.5-20 t/h

  • 02Working pressure:0.7-2.5 Mpa

  • 03Available fuel:coke oven gas, methanol, etc.

Available industries:Heat suppling, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

Send Enquiry Get Quotation(contact us by one of the three ways)

If you are interested in our products, please email us at mayonghong@zozen.com

Introduction of WNS series gas-fired(oil-fired) steam boiler

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Features of WNS series gas-fired(oil-fired) steam boiler

1. The key part such as material cutting, rolling, drilling are proceeded by advanced CNC machining process to reduce the assemble stress and extend boiler working lifetime.

2. Inspection procedure point is set up to guarantee the sequence of expanding and welding, avoid cracking of the tube sheet holes.

3. High quality aluminum silicate fiber is used with fire clay insulation, to control the boiler body temperature below 45℃ to control heat lost.

What can we offer you

Besides the hot sale WNS series boiler mentioned above,we also have other kinds of boiler types for choice. You can choose the proper boiler model according to your needs.If you are new in this industry, we will provide suggestions for you according to your specific needs.

About WNS series gas-fired(oil-fired) steam boiler price, we will provide China 100% factory price and maxmium discount for you. Welcome to visit our factory and company in China.

Advantages of WNS series gas-fired(oil-fired) steam boiler

ZOZEN's gas-fired boilers are designed with large furnace and fully automatic operation, which can make the boilers more energy-efficient and keep the safe running.esigned to wrap the whole furnace body for heat preservation. There are no heat transfer supports between the furnace body and the outside surface. The appearance is mirror polished stainless steel with a protective coating. After the boiler is installed, remove the coating and show the mirror polished stainless steel appearance.

Technical Data

Related Projects

ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
