01Product thermal capacity:2.8-29 MW
02Working pressure:1.0-1.25 MPA
03Outlet temperature:95/70℃, 115/70℃
Available industries:Heating, hotels, schools, hospitals
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]
According to the actual situation of Chinese coal supply, we have designed an assembly pipe SZL series coal-fired hot water boiler. The boiler is mainly divided into two major parts, the grate is one piece and the boiler body is one piece. After reaching the site, completing grading, front, rear arches and other relevant work, the mainframe installation of boiler can be done.
1. The furnace adopts a close-packed a close-packed arrangement of water wall tubes. The application of close-packed water wall in furnace design changes the traditional structural form of the original industrial boiler furnace water-wall, effectively preventing high-temperature flue gas from scouring and radiating the furnace.
2. Independent water circulation system to ensure the safety and reliability of the boiler water circulation. We have designed independent water circulation systems on the structure, the water circulation structure is simple and clear, the water supply task division is clear, and the cross-sectional area ratio of descending pipe and rising pipe in all areas in guaranteed to be more than 0.4. In the premise that the water quality meets the requirements of the GB standard, it ensures the safety of boiler water circulation.
3. The grate bracket adopts double brackets, the lower channel steel, the upper light rail, the upper heat, the lower force, which has changed the structure of the traditional grate bracket angle steel plus friction bar, the grate bracket is not deformed. The active stocker is operated on the light rail and it is tested in the cold state for 48 hours before leaving the factory.
We are the boiler manufacturer with nearly 36 year experience and have formed manure and strict quality control system. Multi strict quality inspections gruarantee the superior quality of each set of boiler plant.
Our boiler has been exported to Vietnam, Malaysia, Pakistan, Nepal, Saudi Arabia, Kenya, Ethiopia, Tanzania, Peru, Chile and over 60 countries.
About SZL series coal-fired hot water boiler price, we provide 100% factory price and maximum discount for you. If you are new in this industry, we will provide professional suggestions and solutions for you. Welcome to visit our factory and company in China

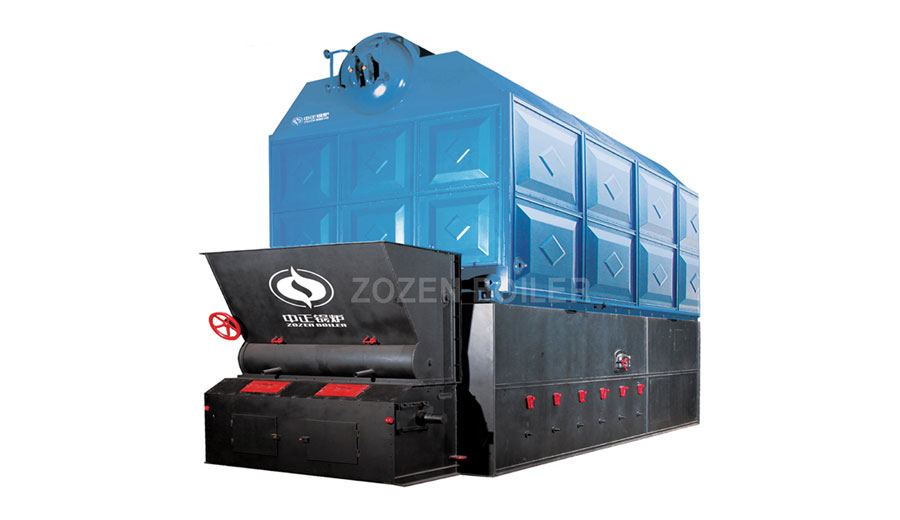

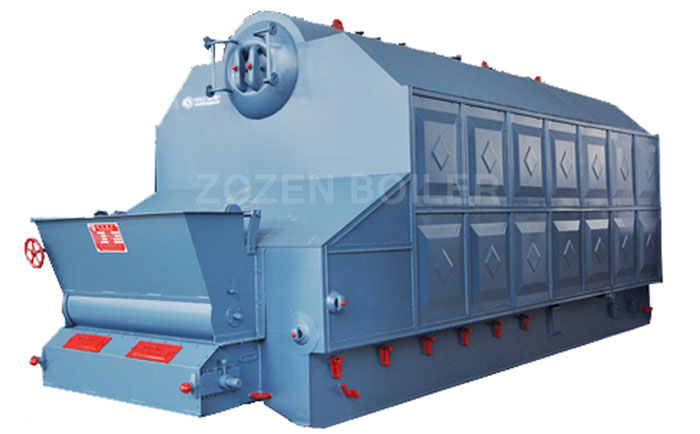

ZOZEN SZL series of boilers are horizontal,double-drum, chain-grate, water-tube steam / hot water boilers. We can adopt different furnace structure, according to coal calorific value, volatile matter, coking characteristics index, etc. from customer, to adapt to the use requirements of different coal types.
01
Single-layer arrangement of large-tonnage coal-fired boilers,low civil construction costs,
02
maintenance workload is small, overall weight is light
03
The water circulation design is reasonable to ensure that the boiler runs without burst pipe.
04
Suited is the best, you provide coal, I choose boiler for you
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
