Home / biomass fired boiler / SZL series biomass-fired hot water boiler
01Product thermal capacity:2.8-29 MW
02Working pressure: 1.0-1.25 MPA
03Outlet temperature:95/70℃, 115/70℃
Available industries:Heating, hotels, schools, hospitals
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

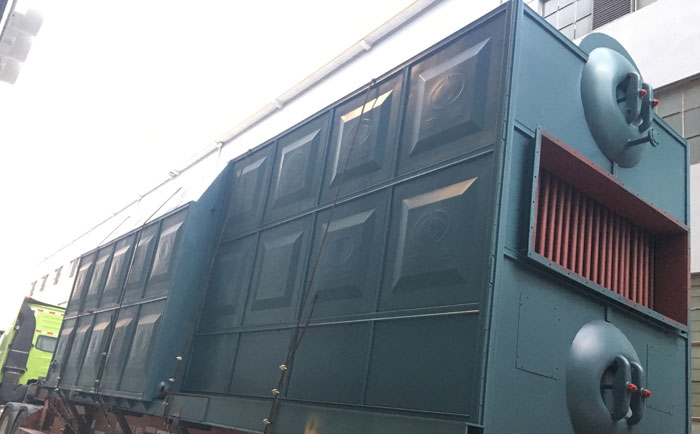

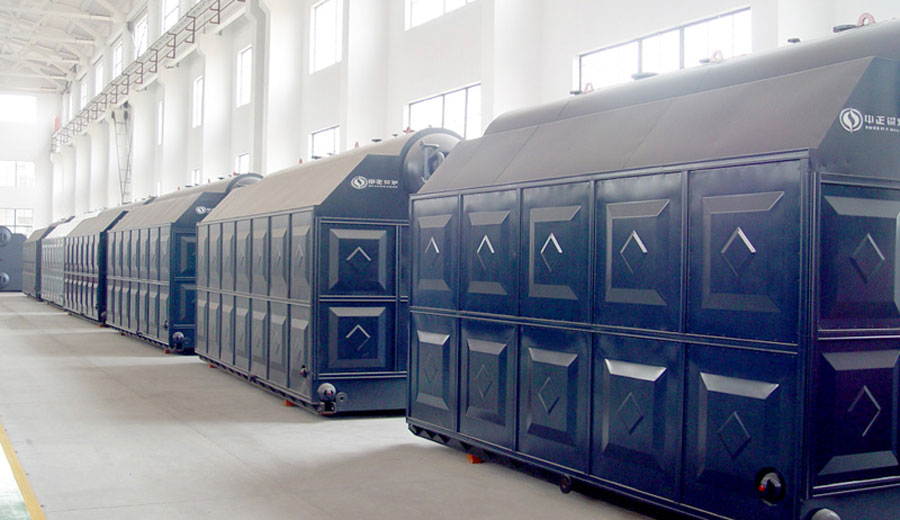

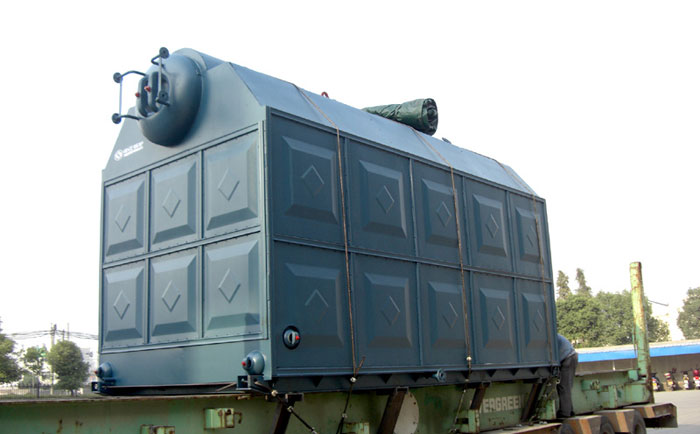

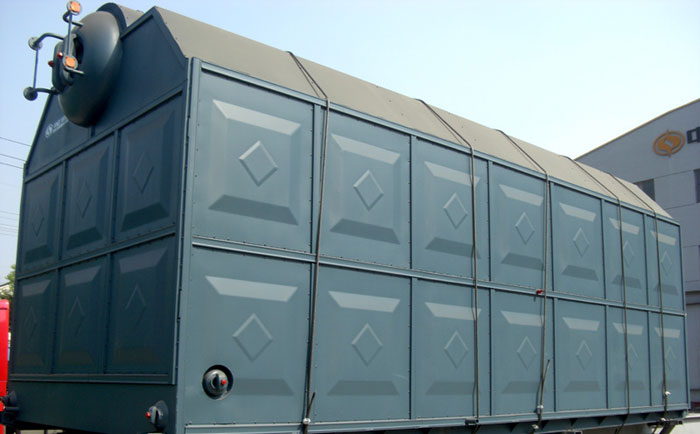

SZL series biomass-fired hot water boiler is package or shop-assembled water pipe boiler with double steam drum and chain grate stoker structure.
4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment.
The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from chimney.
1.Steel tube cutting, thread tube pressing and convection tube processing all adopt advanced CNC technology.
2.The welding of smoke tube and the tube plate adopts pre-expansion to eliminate the gap between the tube and tube plate, then be welded by automatic argon arc welding, which effectively eliminate stress and prolong boiler life.
3.Different biomass raw materials are analyzed by numerical simulations, thermal efficiency is more than 90%.
1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions
2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers
3. Agreeable design of outer casings and a wide choice of colors to your order
4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support
SZL series biomass fired hot water boiler adopts a double cylinder vertical arrangement, and the combustion mode is chain grate. The boiler burns biomass to form solid fuel. The wall of both sides of the furnace wall adopts membrane water wall structure.
01
02
The welding of smoke tube and the tube plate adopts pre-expansion to eliminate the gap between the tube and tube plate.
03
Disturbed flue gas to ensure complete combustion of volatile matters.
04
Graded air supply and special furnace arch structure decrease the NOx emissions to 100mg/m³.
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
