DZL series biomass-fired steam boiler

  • 01Product thermal capacity: 0.5-10 t/h

  • 02Working pressure:0.7-2.5 MPA

  • 03Outlet temperature:170-225 ℃

Available industries:Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital

Send Enquiry Get Quotation(contact us by one of the three ways)

If you are interested in our products, please email us at [email protected]

Introduction of DZL series biomass-fired steam boiler

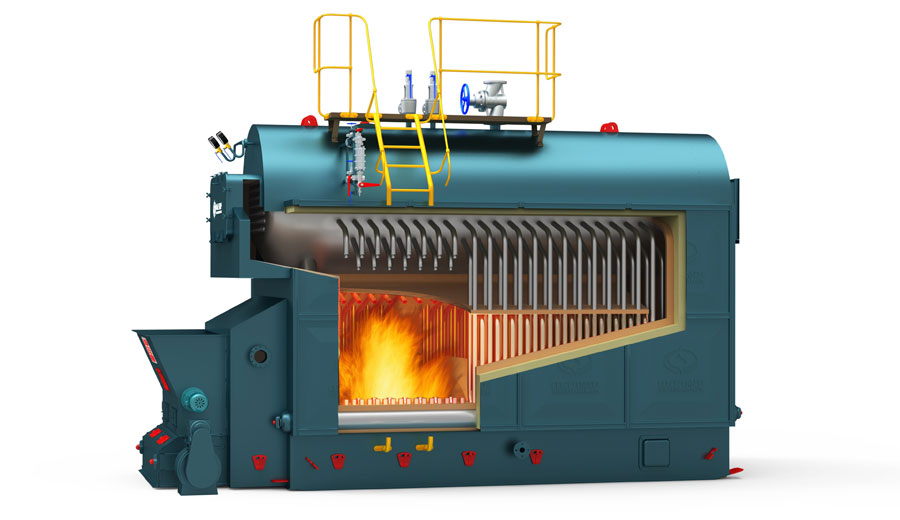

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Feature of DZL series biomass-fired steam boiler

1. Arched tube sheets and threaded fire tube was first adopted in China to increase heat transfer and completely solve the problem of cracking of the back

2. The flange of the socket is welded by robots.

3.Advanced manufacturing technology, using assembly line automatic spinning manufacturing.

4.The high-temperature smoke generated by the combustion first enters the horoscope flue on both sides of the boiler proepr from the tail (in this case, the boiler is water tube type), and the flue gas flows outside the tube.

Why choose us

1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions

2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers

3. Agreeable design of outer casings and a wide choice of colors to your order

4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support

Why choose us

1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions

2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers

3. Agreeable design of outer casings and a wide choice of colors to your order

4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support

Technical Data

Related Projects

ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
